| Vægt | 0,7 kg |
|---|---|
| Størrelse | N/A |
| Cold Lumen [lm] | 3200, 3650 |
| effect | 23, 24 |
| CRI [>] | 80 |
| voltage | 230V 50Hz |
| Weight [kg] | 0,7 |
| CCT | 2700, 3000 |
| Lens Difuser | Clear |
| Beam Angle | 24°, 30°, 40° |
| lumen | 2750 |
| width-mm | 122 |
| Cut-out [mm] | 112 |
| Heigth [mm] | 110 |
| Color | Black, Grey, White |
| Socket / Cap-Base | N/A |
| Mounting area | Innfelt, Tak |

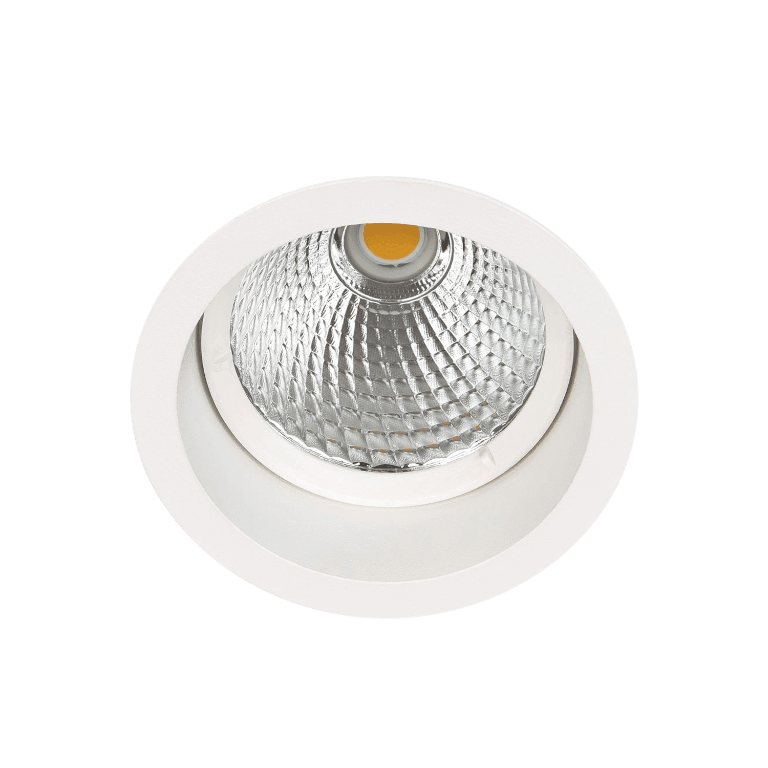

Trimo Mini
Our Trimo range of downlights guarantees a minimum of stray light. This is accomplished by using a recessed LED light source. This model requires a hole dimension of 112mm in diameter making it very versatile providing very powerful light. The Trimo Mini has a 18i3 connector and is supplied with a variety of connector solutions.
Datablad
Alle filer
