| Vægt | N/A |
|---|---|
| Størrelse | N/A |
| Cold Lumen [lm] | 3850, 5200, 5250, 5400, 5500, 5600, 5850 |
| effect | 36, 39, 40 |
| Lens Difuser | Clear |
| CRI [>] | 80, 90, 95 |
| voltage | 230V 50Hz |
| connection | Track 3-Circuit, Track 3-Circuit+dim |
| CCT | 2700, 3000, 4000, Arctic White |
| lumen | 3813, 3862, 3919, 4567, 4709, 4734, 4929, 5066 |
| Beam Angle | 12°, 20°, 30°, 40°, 60° |
| width-mm | 120 |
| Heigth [mm] | 281 |
| Color | Black, Grey, White |
| Socket / Cap-Base | N/A |
| Mounting area | Tak |

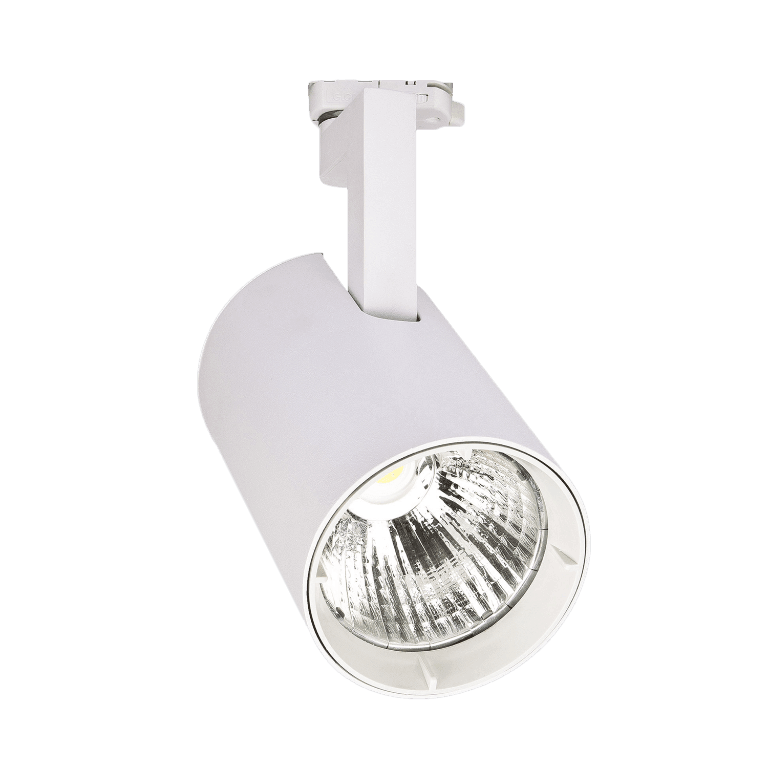

Ray Maxi
Ray Maxi, a powerful spotlight in
the Ray family using a design
concept with the LED driver built
in to the spotlight body. This
gives a modern, slim design
with a high lumen output. The
Ray Maxi can be tilted 90
degrees and rotated 350
degrees on its own axis offering
create flexibility in playing with
light. A diffuser can be mounted
on the luminaire, to be ordered
separately.
